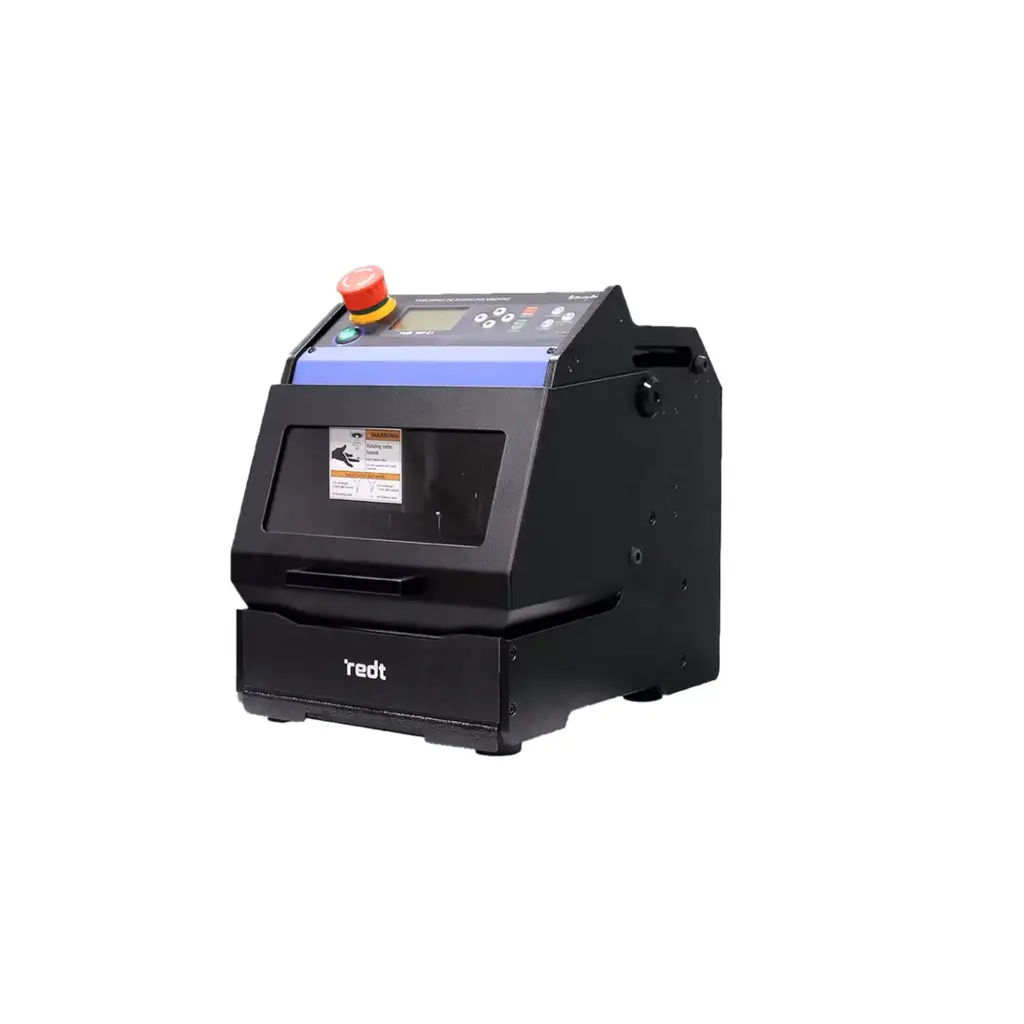

Embossing Die Engraving Machine IMP-C1

Embossing Die Engraving Machine IMP-C1

IMP-C1 is a compact, fully automatic embossing die engraving machine that can engrave on brass or acrylic dies,

used to produce hot leather stamp dies, hot stamping stamp dies, Thomson dies, and soap stamps

Specially equipped with two types of cutters: a roughing cutter and a finishing cutter.

These tools rotate at 14,500RPM and switch automatically, producing precise, high-quality embossing dies in an instant.

Fully Automatic The brass die vise of the IMP-C1 and its automatic measurement function make engraving easier for anyone.

Simply position the workpiece in the vise and the engraving is done in no time.

Easy to Use Machine The IMP-C1 is a fully automatic machine that does all the engraving work after positioning the workpiece.

It is very simple to use and takes the complexity out of engraving on brass dies.

Various Standard Sizes of Materials We at Redt offer a variety of materials with various standard sizes to make dies.

Features that make engraving easy and fast for everyone Automatic workpiece measurement function

The IMP-C1 is equipped with a sensor that automatically measures the height of the workpiece.

~The sensor automatically measures the height of the workpiece and detects the starting point.

~Engraving can be performed immediately; there is no need to manually set the tool for the workpiece.Automatic tool length measurement function

The IMP-C1 is equipped with a sensor that automatically measures the length of the tool.

~The sensor automatically measures and determines the correct length for both tools.

~No need to manually change the setting every time you change the tool. Equipped with high-quality engraving tools

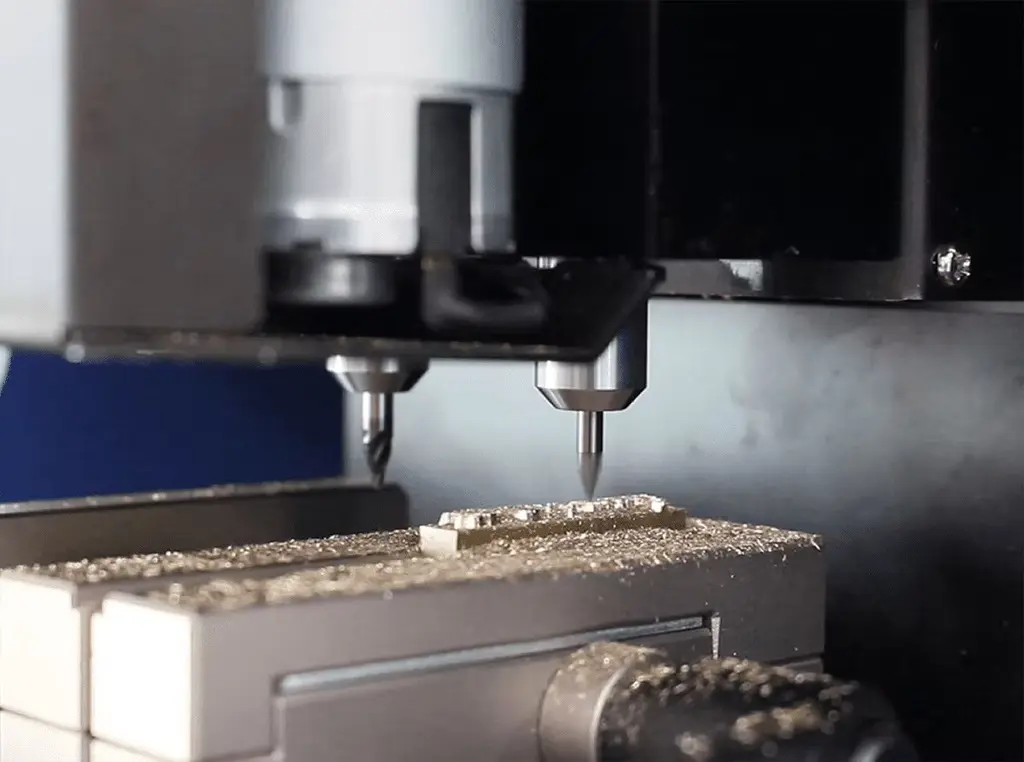

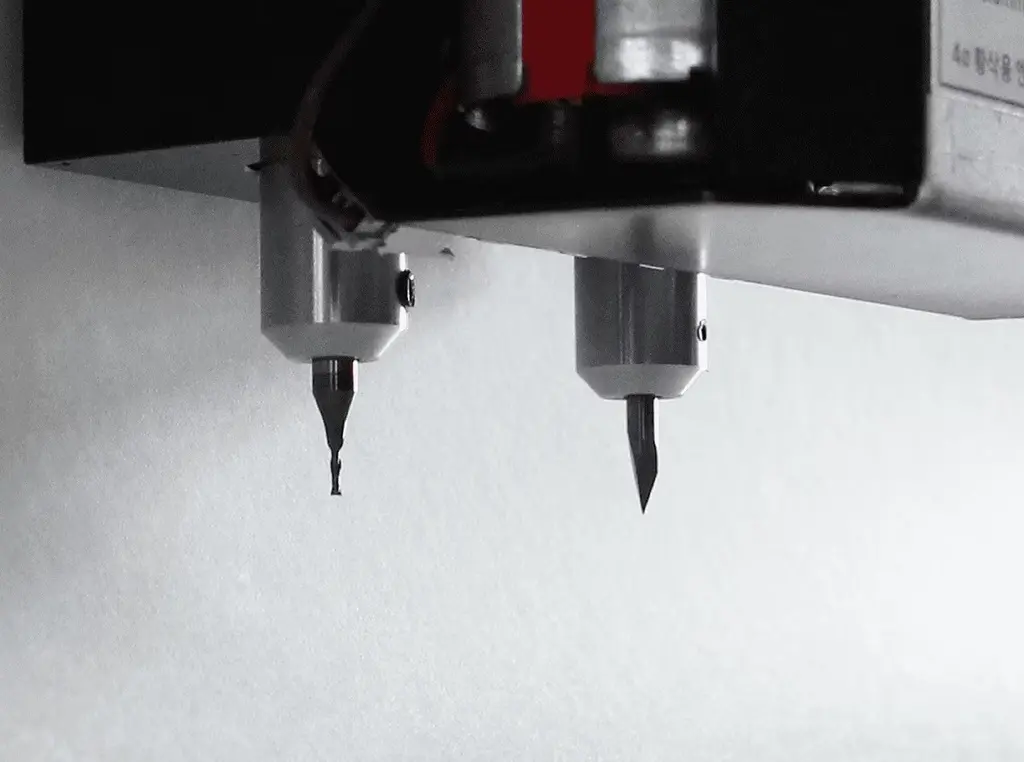

The IMP-C1 is equipped with two tools:

Roughing tool and finishing tool, which can be automatically switched during operation.

The roughing and finishing tools enable fast engraving operations.

The engraving tool automatically switches according to the type of operation it is performing (i.e., roughing or finishing). (This also helps to extend the life of the tool).

The automatic calibration function automatically adjusts the length of the tool.

The IMP-C1 is designed with a closed structure to prevent the user from contacting dust and debris generated from the engraving brass mold.

~ Closed structure ensures a clean and dust-free environment during engraving, ensuring safety Because the machine is closed, it can prevent injuries from rotating blades during operation.

~ Equipped with a tray to collect the debris generated by engraving. The tray is also perfect for easily disposing of all the collected debris at one time.

~ It can be easily cleaned with a vacuum cleaner.

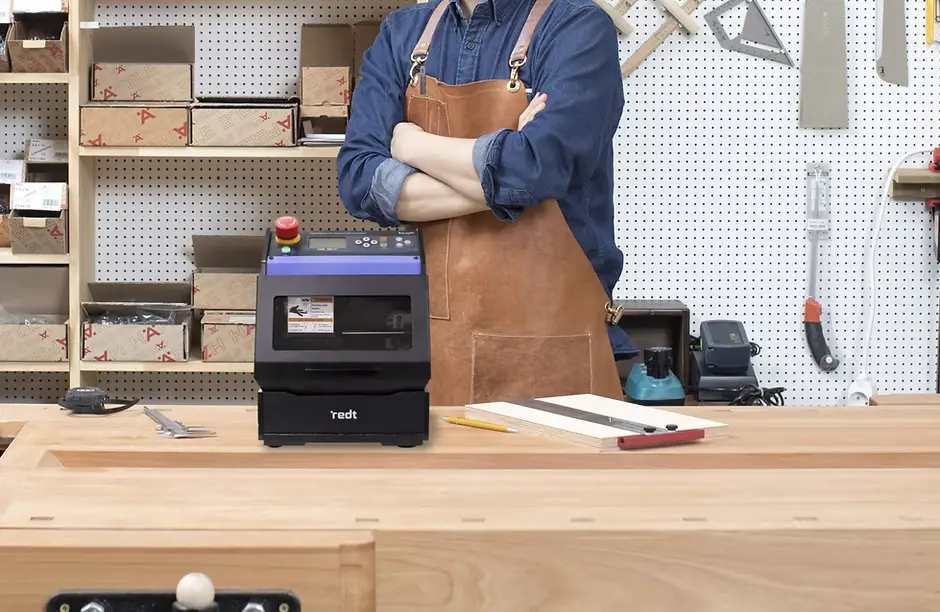

The IMP-C1 is small in size, quiet in noise, and easy to install.

~ The modern, sophisticated and sophisticated design of this machine is perfect for any workshop/workspace.

~ Small in size, light in weight, and easy to install.

~ It is designed to operate safely to promote a good working environment.

Model : IMP-C1

Weight 23.7kg

Size: 270(W) x 352(D) x 360(H) mm

Engraving area : 45(X) x 75(Y) X 30(Z) mm

Power Supply AC100~240V, 50Hz/60Hz

Spindle Motor RPM 14,500 rpm

Spindle Motor 36W, DC
